Sizes Are 8ft 10ft 12ft 14ft and they are 36” Tall and have 48” Deep Bucket. The 14ft Drag Scrapers Are A Special-Order Unit.

Over the years our scrapers have held up to the test of time. As we traveled down the road, we still to this day keep improving the quality and versatility of our scrapers. Quality and durability have priced us out of the cheap scraper department. But our customers keep coming back for the durability and long-lasting endurance of our scrapers. We have increased axel and wheel strength on the scrapers. We have added an adjustable hitch on the front of the scrapers to cover the range of the new tractor hitch heights. We have also increased the bracing on the back panel, side panels, and the tongue. By doing this we are increasing the strength and decreasing the flex during the scraping of heavy loads.

We want you to be so impressed with our scrapers when you need another one you will automatically call and get it from us. Other Dairymen do, why shouldn’t you?

Weights Of Scrapers

• 8FT HI PRO 1800 LBS
• 10FT HI PRO 2200 LBS
• 12FT HI PRO 2700 LBS
• 14FT HI PRO 3300 LBS

You will find curb and lane scrapers that will accompany most of our freestall equipment. Tractor mount / skid steer grooming units / 3 point units.

Curb and lane scrapers make sense in the freestalls. It cleans the wet manure away from the curb and out of the alleyway to keep the cows from tracking wet manure back in to the stall bedding and giving bacteria a place to start again. Dry bedding is the goal to stop bacteria breeding environments. This is a simple and inexpensive way to get that job done. But you get an added feature with the curb and lane scraper, you get an implement guide to keep the unit running straight and true along the beds and easy to maintain a long life on the rubber blade. They even go over existing alley mats. Parts are always in stock and all of our units are now equipped with QD Plates that fit most cat II 3 point arrangements. This unit will work on the John Deere QD Style 3 Point Couplers.

We have built a lot of different styles over the years. Look at the pictures and let us know what will work for you.

Tire Scrapers

• 3 Point Mount Tire Scrapers
• Skid Steer Mount Tire Scrapers
• Loader Blade Mount Tire Scrapers +
• Loader Qd Style Mount Tire Scrapers
• Then You Have The Combination Mounts For Being Able To Use The Same Scraper On 2 Different Mounting Styles.
• The Drag Scraper Style Tire Scraper.

If We Have The Mounting Bracket You Are Looking For. We Can Install It On A Tire Scraper Of Your Choosing.

Low profile drag scrapers 8ft And 10ft are standard
but other sizes are always possible.

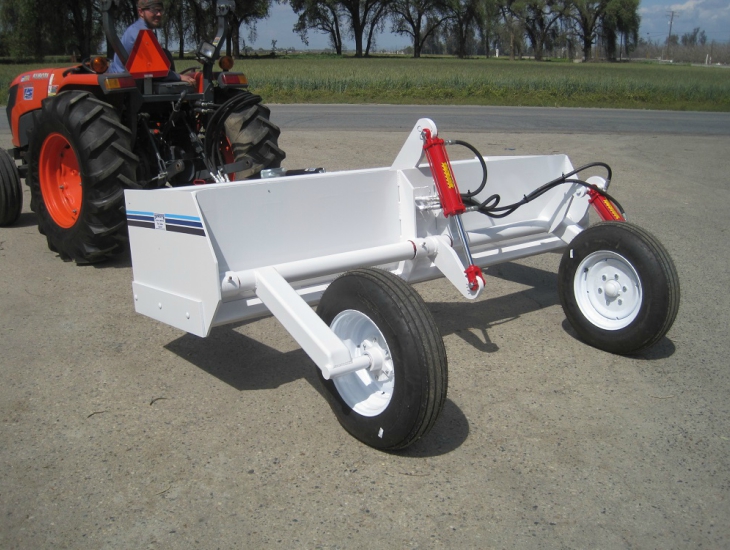

The low profile drag scraper bucket is 2ft tall and 3ft deep. The standard widths are 8ft and 10ft and we have made many other sizes and specialty units. Our scrapers are built heavier than the ones you find at the tractor dealerships. We add a lot of bracing for a sturdy and strong Scraper. Both cutting and side blades are reversible. The new hitches are adjustable. The hydraulic lines run through the tongue of the scraper to keep the lines out of the way of the tractor tires, so no accidents happen. If you don’t see what you are looking for on our website then please give us a call and let us see what we can do for you. For out of the country shipping we build the scraper with a bolt-on removable tongue.

Box scraper dimensions are 24” Tall 36” Deep. All of our 3 point equipment comes with Qd 3 Point attachment plates. They are standard arrangement for most of the frames out there, Including The John Deere Qd Couplers.

• 6FT BOX SCRAPER 680 LBS
• 7FT BOX SCRAPER 770 LBS
• 8FT BOX SCRAPER 890 LBS

Other 3 point scrapers are available on special request only. The 6, 7, 8, are stocking items but If you look at the “special Scrapers” Section, you will see some of the units we can build.

Drag scrapers with adjustable independent and together acting axels are great for road building and maintaining.

We build drag scrapers with adjustable axels heights and we build drag scraper for laser controls. Whatever your need, give us a chance to serve you.

Look at some of the specialty scrapers we have built in the past.

Coming Soon
